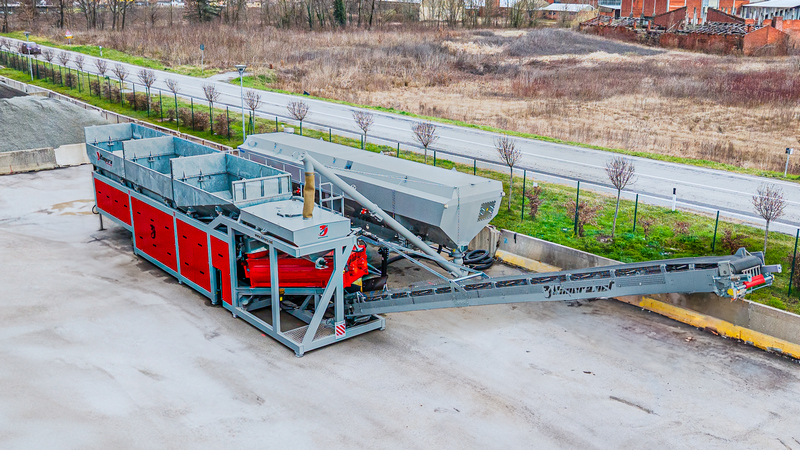

KIMERA K24150 – THE HIGHEST PRODUCTION SPEED

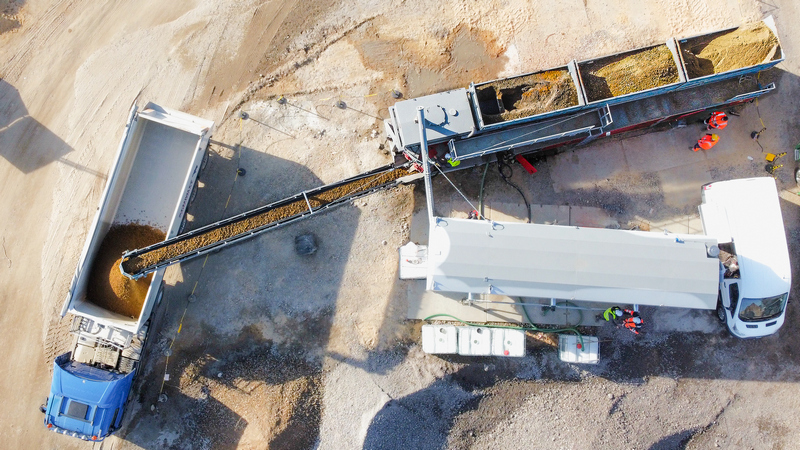

K24150 mobile gravimetric mixer is designed to ensure maximum productivity in any operational context. With an outstanding production speed (up to 150 m³/h) and unprecedented versatility, it is the ideal solution for
dynamic job sites with large volumes, such as road construction sites and infrastructures.
ADVANCED MIXING TECHNOLOGY

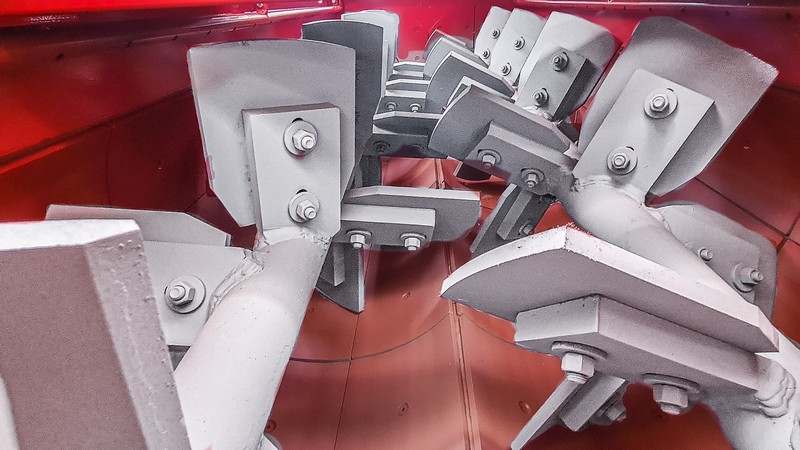

The 30 KW twin-shaft continuous mixer is the true heart of the K24150. With two shafts of 600 mm diameter and a total length of 3 m, it ensures exceptional mixing capacity and continuous material flow. Engineered
for tough materials such as RCC, cold asphalt and stabilized soils, it delivers outstanding performance and long-lasting reliability.
Its 40 interchangeable HARDOX® 450 paddles (15 mm thick) and HARDOX® 450 bottom (10 mm) guarantee homogeneity and reduced maintenance.
UNMATCHED PRECISION

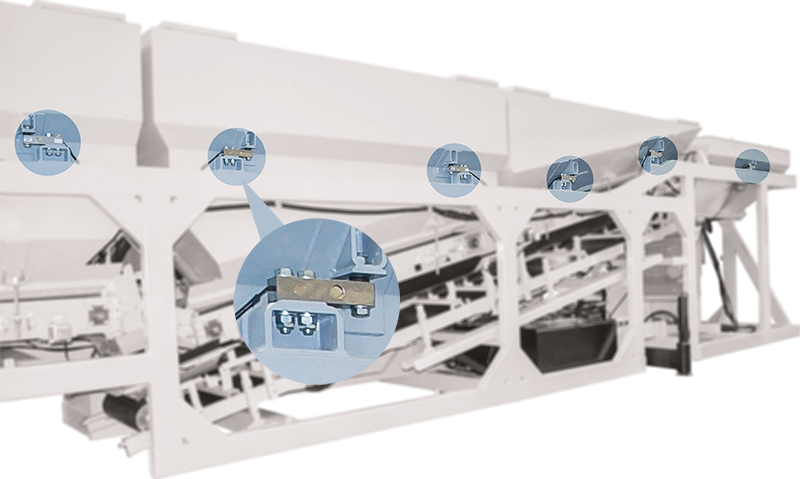

Aggregates and cement are dosed by weight, with precise and consistent measurements throughout the entire production cycle. The three aggregate hoppers are installed on OIML C3 certified load cells (four per hopper), which weigh the extracted amount by weight loss. The cement silo is also mounted on three load cells using the same principle.
Water and liquid admixtures are managed by high-precision electromagnetic flow meters, capable of detecting even particle-filled or aggressive fluids. With no internal moving parts, these devices ensure low maintenance and long-term stability.
SCHEME AND TECHNICAL SPECS
| Maximum production speed | 150 m³/h 200 yd³/h |
|---|---|
| Max. production fully loaded | 24 m³ 30 yd³ |
| Hopper 1 capacity | 11,00 m³ 14.50 yd³ |
| Hopper 2 capacity | 10,50 m³ 13.80 yd³ |
| Hopper 3 capacity | 8,50 m³ 10.50 yd³ |
| Cement capacity | 2500 kg 5,500 lbs |
| Max. aggregate size | 100 mm 4′ |
| Height | 3120 mm 10.24 ft |
| Length | 13700 mm 44.95 ft |
| Width | 2500 mm 8.20 ft |
| Weight* | 20000 kg 45,000 lbs |
