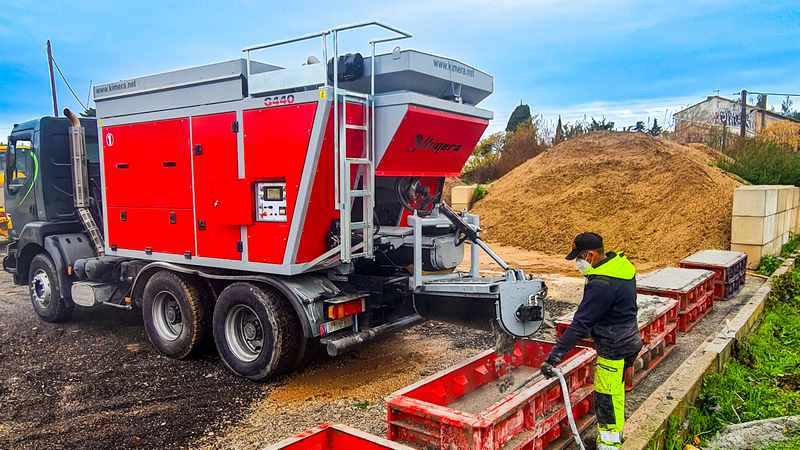

KIMERA G440 – ULTRA COMPACT, POWERFUL AND FAST
Kimera G440 is an ultra-compact mobile gravimetric mixer, designed to offer maximum mobility and high productivity. Despite its small size, it can produce up to 40 m³/h, ensuring precision and homogeneity in every mix. Ideal for those seeking a flexible, fast, and uncompromising solution.
ADVANCED MIXING TECHNOLOGY

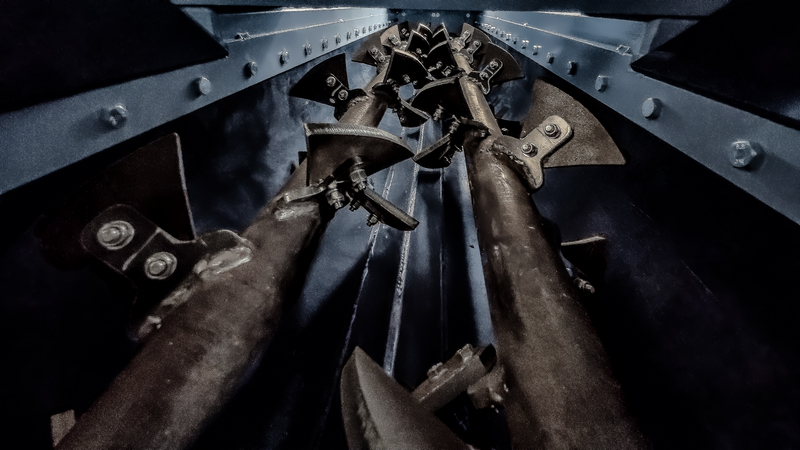

The heart of Kimera G440 is its counter-rotating twin-shaft mixer, designed to:
Optimize mixing times, increasing productivity without compromising quality.
Guarantee uniform and consistent mixes, regardless of the type of material.
Minimize waste and reduce operating costs.
UNMATCHED PRECISION

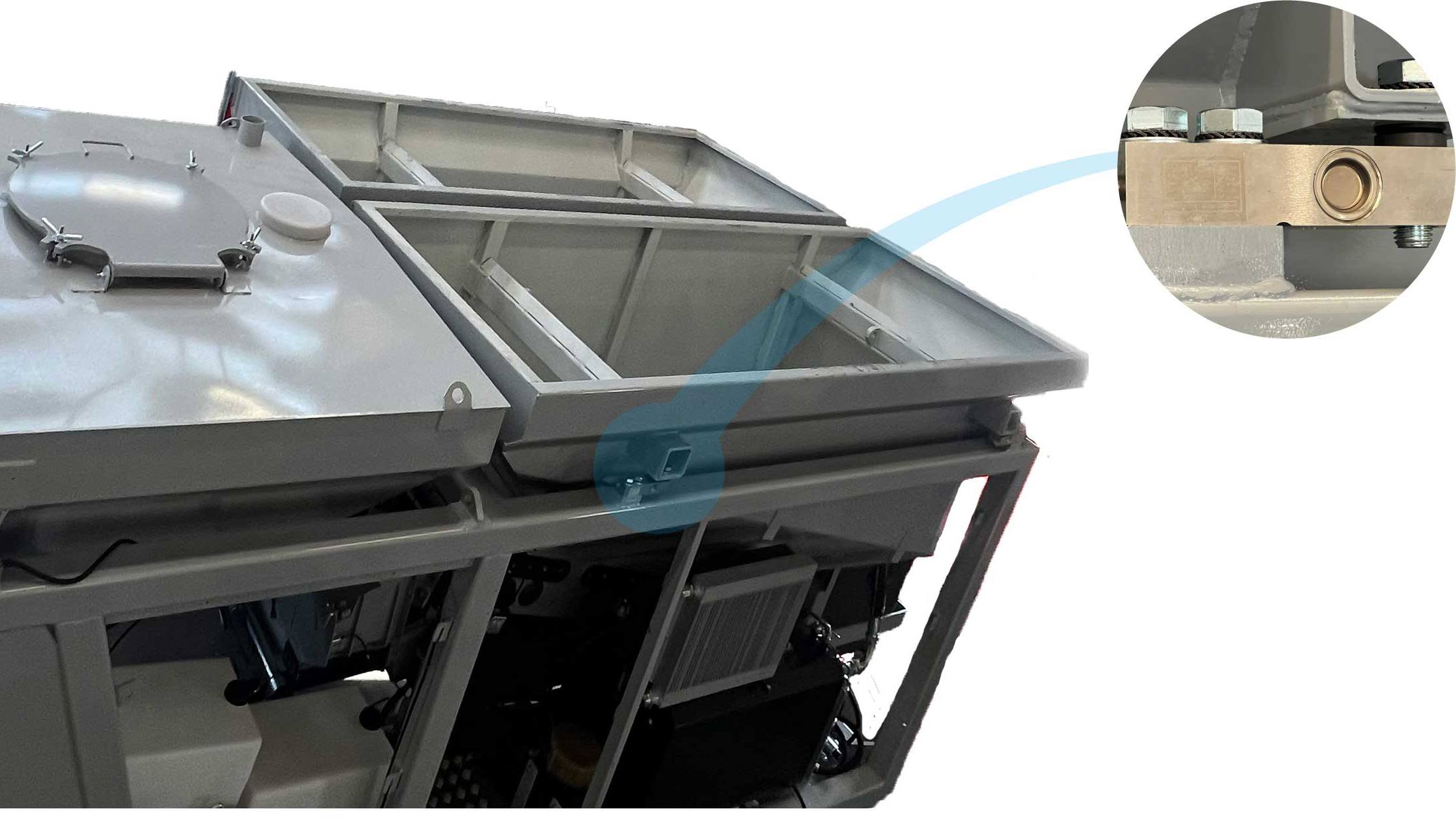

The two aggregate hoppers and the cement silo are installed on OIML C3 certified load cells and weigh the materials by decrement, ensuring maximum dosing precision and recipe repeatability. All materials can be continuously refilled during the production cycle, eliminating downtime and maximizing productivity.
SCHEME AND TECHNICAL SPECS
| Maximum production speed | 40 m³/h 55 yd³/h |
|---|---|
| Max. production fully loaded | 4 m³ 6.5 yd³ |
| Hopper 1 capacity | 2,7 m³ 3.5 yd³ |
| Hopper 2 capacity | 2,7 m³ 3.5 yd³ |
| Water capacity | 1000 l 265 gal |
| Cement capacity | 2000 kg 4,000 lbs |
| Max. aggregate size | 50 mm 2′ |
| Height | 2300 mm 7.55 ft |
| Length | 5453 mm 17.89 ft |
| Width | 2300 mm 7.54 ft |
| Weight* | 4000 kg 8,800 lbs |
